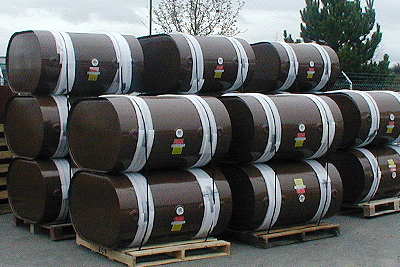

Greer Obround Steel Tanks can be seen all over the Northwest and throughout Alaska. Perfect for storing home heating oil they can be made to UL-80 standards and come in several useful sizes. Accessory kits for home heating tank installation are also available.
Our Obround Steel Tanks are available as stock items from all of our facilities in Anchorage and Fairbanks, AK and Lakewood, WA.
No Spider Obrounds or Obround tank stands are available in Alaska.
12″ pipe legs and feet to attach to the tanks are available in Alaska.
Product Details
Available from our Fairbanks Facility.
* No Spider Obrounds or Obround tank stands are available in Alaska.
** 12″ pipe legs and feet are available to attach to the tanks.
Standard Features:
- UL standards but not listed
- 2 ea 2″ and 1ea 1 1/2″ threaded openings on the top of the tank
- 1 ea 3/4” threaded opening on the bottom of the side of the tank
Non-UL Obround Tanks – Fairbanks:
| Gallons | GA | DIA | Length | Weight |
|---|---|---|---|---|
| 110 | 14 | 27" x 44" | 24" | 115# |
| 165 | 14 | 27" x 44" | 36" | 145# |
| 220 | 14 | 27" x 44" | 48" | 178# |
| 275 | 14 | 27" x 44" | 60" | 205# |

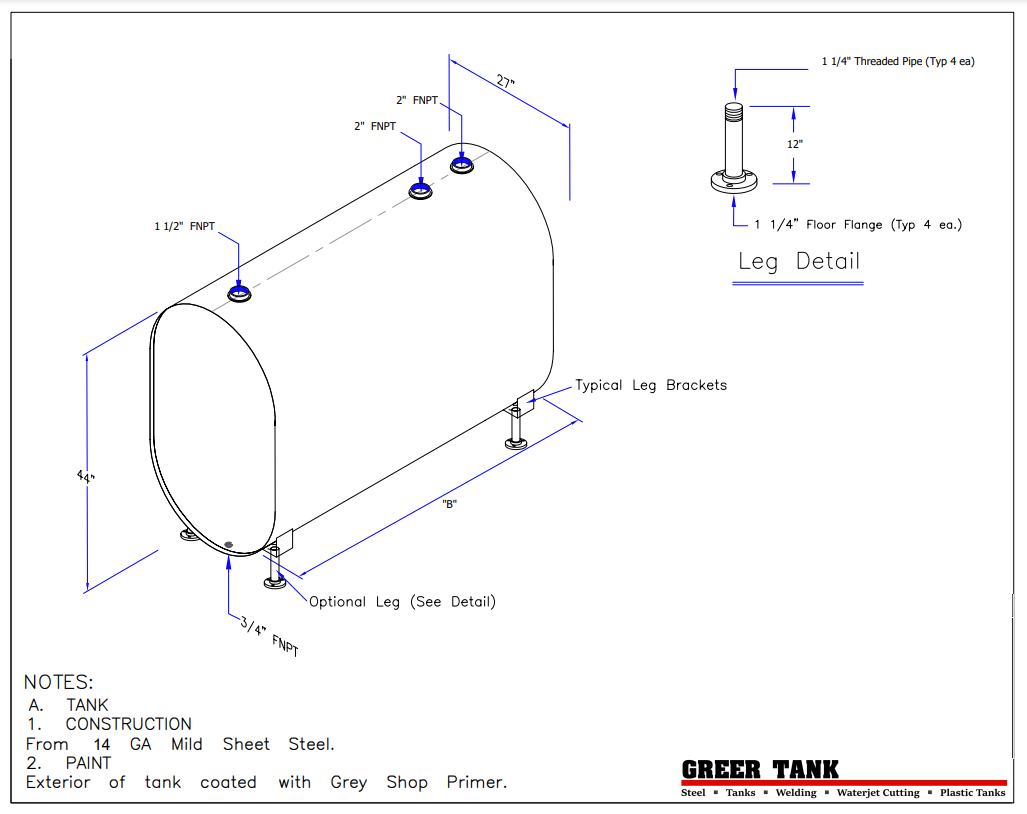

Detail Drawing – including leg option:
Available from our Anchorage Facility.
*No Spider Obrounds or Obround tank stands are available in Alaska.
**12″ pipe legs and feet are available to attach to the tanks.
Standard Features:
- UL standards but not listed
- 2 ea 2″ and 1ea 1 1/2″ threaded openings on the top of the tank
- 1 ea 3/4” threaded opening on the bottom of the side of the tank
Non-UL Obround Tanks – Anchorage:
| Gallons | GA | DIA | Length | Weight |
|---|---|---|---|---|
| 95 | 14 | 27" x 44" | 24" | 118# |
| 160 | 14 | 27" x 44" | 36" | 150# |
| 205 | 14 | 27" x 44" | 48" | 181# |
| 260 | 14 | 27" x 44" | 60" | 212# |

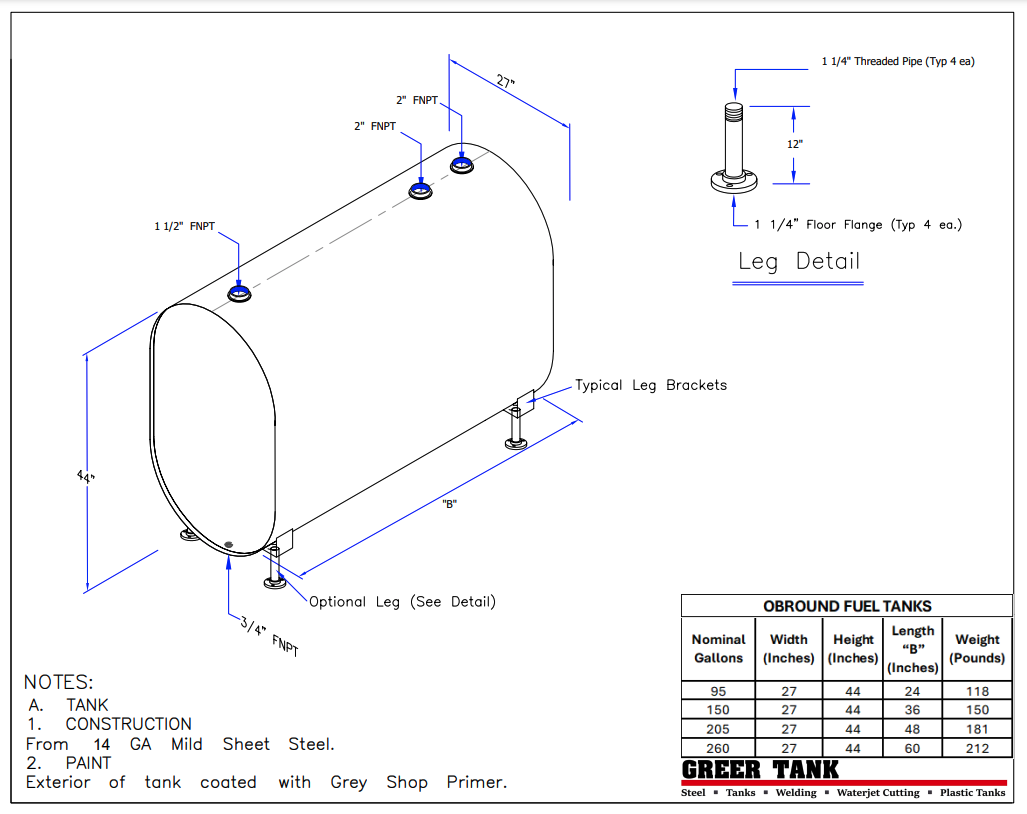

Detail Drawing including leg option:
Available from our Lakewood Facility.
Standard Features:
- 3/4” threaded opening on the bottom of UL tanks.
- 1/2” threaded opening on the bottom of Non UL tanks.
- 3 or 4 – 2” threaded openings on top.
- Exterior of each tank is chemically cleaned and coated with primer; no interior coating.
- Heavy-duty 1-1/4” pipe threaded leg attachments.
- Optional leg kit and accessory kits are available for additional charge
- We stock all necessary equipment needed for installation
UL-80 Obround Tanks:
| Gallons | GA | DIA | Length | Weight |
|---|---|---|---|---|
| 110 | 12 | 27" x 44" | 24" | 160# |
| 165 | 12 | 27" x 44" | 36" | 205# |
| 220 | 12 | 27" x 44" | 48" | 250# |
| 275 | 12 | 27" x 44" | 60" | 285# |
| 275 w/handle | 12 | 27" x 44" | 60" | 287# |
Non-UL Obround Tanks:
| Gallons | GA | DIA | Length | Weight |
|---|---|---|---|---|
| 110 | 14 | 27" x 44" | 24" | 115# |
| 165 | 14 | 27" x 44" | 36" | 145# |
| 220 | 14 | 27" x 44" | 48" | 178# |
| 275 | 14 | 27" x 44" | 60" | 205# |
| 275 Spider* | 14 | 27" x 44" | 60" | 285# |
*Spider Tanks are available in all sizes as a special order
Specs:
Obround Steel Tanks kit includes basic accessories for home heating tank installation.
Obround Accessories Kits Include:
- 4 ea.—1-1/4” x 6” Galv. Pipe Nipple (Legs) – Part # PFN1146G
- 4 ea.—1-1/4” Galv. Floor Flange—Part # FF125G
- Morrison Fig: 155 2” Double Outlet Tee Vent—Part # VCT2
- 2” x 6” Galv. Riser Pipe for Vent—Part # PFN26G
- Krueger Sentry H-2-44 Liquid Level Gauge—Part # STGH244
- Duplex Bushing w/Brass 2” x 3/8 x3/8—Part # PFT238BG
- Morrison Fig: 179 2” Hinged Aluminum Lockable Fill Cap—Part # FC2AM
Tank stands may also be purchased as an optional item. Greer stocks 24” and 48” tank stands but can fabricate any size needed.
